PCB Kurulu Montajı

Giriş

PCB Meclisi, PCB bileşenleri ve montajının yanı sıra basılı devre tasarımı, PCB imalatı ve nihai ürünün güçlü bir anlayışıyla ilgili bilgi gerektiren bir işlemdir. Devre kartı montajı, mükemmel ürünü ilk seferde sunmak için bulmacanın yalnızca bir parçasıdır.
San Francisco Circuits tüm devre kartı hizmetleri için tek çözümdür; bu nedenle tasarımdan montaja kadar PCB üretim süreciyle sıklıkla yerleşik kalırız. Güçlü bir şekilde kanıtlanmış devre montajı ve imalat ortakları ağı sayesinde, prototipiniz veya üretim PCB uygulamanız için en gelişmiş ve neredeyse sınırsız yetenekleri sağlayabiliriz. Satın alma süreciyle birlikte gelen sıkıntıdan kurtulun ve birden fazla bileşen satıcısı ile uğraşın. Uzmanlarımız size nihai ürününüz için en iyi parçaları bulacaktır.

PCB Montaj Hizmetleri:

Hızlı dönüş prototip montajı
Anahtar teslimi montaj
Kısmi anahtar-takımı
Konşimento montajı
RoHS uyumlu kurşunsuz montaj
RoHS olmayan montaj

Konformal kaplama
Nihai kutu kurma ve paketleme

PCB Montaj İşlemi

Delme ----- Pozlama ----- Kaplama ----- Etaching & Stripping ----- Delme ----- Elektriksel Test ----- SMT ----- Dalga Lehimleme --- --Aygıt Oluşturma ----- BİT ----- Fonksiyon Testi ----- Sıcaklık ve Nem Testi

Test Hizmetleri

X-Işını (2-D ve 3-D)
BGA X-Işını Muayene
AOI Testi (Otomatik Optik Muayene)
BİT Testi (Devre Dışı Test)
İşlevsel Testler (kurul ve sistem seviyesinde)
Uçan Prob

Yetenekler

Yüzeye Monte Teknolojisi / Parçaları (SMT Montajı)
Through-Hole Cihazı / Parçaları (THD)
Karışık Parçalar: SMT ve THD montajı
BGA / Mikro BGA / uBGA
QFN, POP ve kurşunsuz chip
2800 pin sayısı BGA
0201/1005 pasif bileşenler
0,3 / 0,4 Pitch
PoP Paketi
Flip-chip under-filled CCGA
BGA Aracı / Yığınlama
ve dahası…

Professional PCB Board Fabrication , Flexible Printed Circuit Board for LED Bulb

Name: Professional PCB Board Fabrication , Flexible Printed Circuit Board for LED Bulb
Brand: JHD PCB
SKU: JHD-LPA-14012
Price: 0.1 USD
Availability: InStock
Rating: 4.6 (111 reviews)

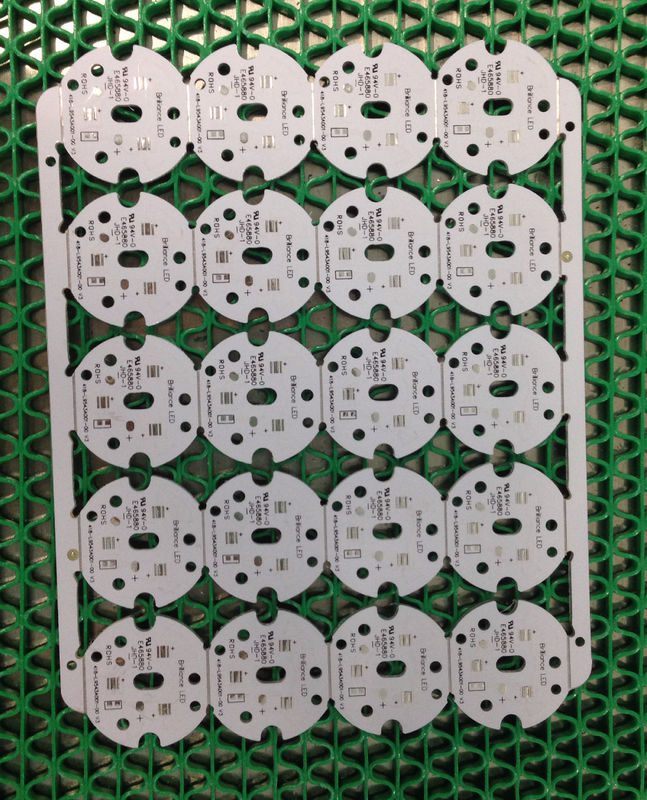

Büyük resim : Professional PCB Board Fabrication , Flexible Printed Circuit Board for LED Bulb

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	JHD PCB
Sertifika:	UL,RoHs,SGS,ISO9001-2008
Model numarası:	JHD-TA-5790

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1000pcs
Fiyat:	US$0.1-US$4.99
Packaging Details:	Vacuum in Carton
Teslim süresi:	7-10 gün
Payment Terms:	T/T, Western Union
Supply Ability:	30000 square meters per month

İletişim

Detaylı ürün tanımı

Vurgulamak:

led pcba

custom pcb assembly

Professional PCB Board Fabrication , Flexible Printed Circuit Board for LED Bulb

Quick Details

Place of Origin:	Guangdong, China (Mainland)	Brand Name:	semshine	Model Number:	SPCB-700 aluminum pcb
Base Material:	aluminum	Copper Thickness:	1 oz	Board Thickness:	2.0mm
Min. Hole Size:	0.3mm	Min. Line Width:	0.15mm	Min. Line Spacing:	0.15mm
Surface Finishing:	HASL	sloder mask:	white	Board Thickness Tolerance:	+/-10%
V-cut angle:	25° 30° 45° 60°	Twist&Wrap:	≤ 0.5%	File:	Protel 99se P-CAD Autocad Cam350
Inner packing:	Vacuum packing,Plastic bag for aluminum pcb	Outer packing:	Standard carton packing for aluminum pcb	Service:	PCB and PCBA
Layer:	single sided	silk mask:	balck

Packaging & Delivery

Packaging Details:	Inner packing: Vacuum packing,plastic bag for aluminum pcb Outer packing: Standard carton packing for aluminum pcb
Delivery Detail:	6-15 days

Welcome To Semshine

- Electronics manufacturing aluminum pcb, aluminum pcb board, aluminum pcb for LED with white solder mask ink

- One stop PCBA service, from components purchasing, PCB production, assembly, testing
- PCB Design & Assembly

- Provide Prototyping

- SMT&PCBA one-stop source

- Quick-turn produce

Specification of PCB Manufacturing

1	Description	PCB Specification
2	Material	FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum
3	Layer	1-20
4	Board Thickness	0.2mm- 4.0mm
5	Board Thickness Tolerance	+/-10%
6	Copper thickness	17.5um-175um (0.5oz-5oz)
7	Min Trace Width	0.15mm
8	Min Space Width	0.15mm
9	Min Drilling Dia	0.2mm
10	PTH copper thickness	0.4-2mil(10-50um)
11	Tolerance of Etching	±1mil(±25um)
12	V-cut angle	25°,30°,45°,60°
13	Pearl Strength of line	≥ 6lb/in(≥ 107g/mm)
14	Impedance control and tolerance	50Ω±10%
15	Twist&Wrap	≤ 0.5%
16	Soldermask	Green, Red, Blue, White, Black, Yellow
17	Surface Finish/Plating	HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG
18	Certificate	ROSH. ISO9001,UL Certificate
19	File	Protel 99se/P-CAD/Autocad/Cam350
20	Inner packing	Vacuum packing,Plastic bag
21	Outer packing	Standard carton packing

Detailed Terms for Pcb Assembly

1	Quantity	Prototype&Low Volume PCB Assembly,from 1 Board to 250, is for specialty,but we can handle orders up to 1000
2	Type of Assembly	SMT and Thru-hole
3	Solder Type	Water Soluble Solder Paste,Leaded and Lead-Free
4	Components	Passives Down to 0201 Size BGA and VFBGA Leadless Chip Carries/CSP Double-Sided SMT Assembly Fine Pitch to 08 Mils BGA Repair and Reball Part Removal and Replacement-Same Day Service
5	Bare Board Size	Smallest:0.25x0.25 Inches Largest:20x20 Inches
6	File Formats	Bill of Materials Gerber Files Pick-N-Place File(XYRS)
7	Type of Service	Turn-Key,Partial Turn-Key or Consignment
8	Component Packaging	Cut Tape Tube Reels Loose Parts
9	Turn Time	Same Day Service to 15 day service
10	Testing	Flying Probe test XRAY Inspection AOI Test

PCB or PCB Assembly files requests

1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly
To short the lead time, please kindly advise us if there is any acceptable components substitution.
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary

Our Advantage

1.Our professional engineer can provide PCB design, BOM.

2.Quick and econimic delivery term.

3.Provide PCB & PCBA prototype, and medium&low volumn quick board services.

4.Component purcharsing, SMT&PCBA one-stop source.

5.Two-hours quote response, 24 hours quick-turn produce.

6.FR4 Double-sided and Alum single-sided sample in 24 hours.

Lead Time

Samples: 3-4 days

Mass Production: 7-15 days(depend on the quantity)

Payment Terms

T/T,Western Union

Purchase Tips

a. If you want to purchase our PCB, you should provide a formal Gerber files or *.pcb file or something like that.
b. If you want to purchase by large quantity, please ask Mr.Hank.
c. If you want to purchase the PCBA, you should provide the Gerber files, *.pcb file , BOM list etc.
d. If you want to reproduce some exsited PCB board for you, please first provide very clear pictures , then if you are satisfied with our estimate quotation, then send us the real thing, so we can clone it for you.
e. If none of the above can help you, please contact us directly by Skype, QQ or Email. We are very glad to answer the questions you ask, your satisfaction is our final destination.

JHD PCB would like to be your reliable partner in near future!
