Giriş
PCB Meclisi, PCB bileşenleri ve montajının yanı sıra basılı devre tasarımı, PCB imalatı ve nihai ürünün güçlü bir anlayışıyla ilgili bilgi gerektiren bir işlemdir. Devre kartı montajı, mükemmel ürünü ilk seferde sunmak için bulmacanın yalnızca bir parçasıdır.
San Francisco Circuits tüm devre kartı hizmetleri için tek çözümdür; bu nedenle tasarımdan montaja kadar PCB üretim süreciyle sıklıkla yerleşik kalırız. Güçlü bir şekilde kanıtlanmış devre montajı ve imalat ortakları ağı sayesinde, prototipiniz veya üretim PCB uygulamanız için en gelişmiş ve neredeyse sınırsız yetenekleri sağlayabiliriz. Satın alma süreciyle birlikte gelen sıkıntıdan kurtulun ve birden fazla bileşen satıcısı ile uğraşın. Uzmanlarımız size nihai ürününüz için en iyi parçaları bulacaktır.
PCB Montaj Hizmetleri:
Hızlı dönüş prototip montajı
Anahtar teslimi montaj
Kısmi anahtar-takımı
Konşimento montajı
RoHS uyumlu kurşunsuz montaj
RoHS olmayan montaj
Konformal kaplama
Nihai kutu kurma ve paketleme
PCB Montaj İşlemi
Delme ----- Pozlama ----- Kaplama ----- Etaching & Stripping ----- Delme ----- Elektriksel Test ----- SMT ----- Dalga Lehimleme --- --Aygıt Oluşturma ----- BİT ----- Fonksiyon Testi ----- Sıcaklık ve Nem Testi
Test Hizmetleri
X-Işını (2-D ve 3-D)
BGA X-Işını Muayene
AOI Testi (Otomatik Optik Muayene)
BİT Testi (Devre Dışı Test)
İşlevsel Testler (kurul ve sistem seviyesinde)
Uçan Prob
Yetenekler
Yüzeye Monte Teknolojisi / Parçaları (SMT Montajı)
Through-Hole Cihazı / Parçaları (THD)
Karışık Parçalar: SMT ve THD montajı
BGA / Mikro BGA / uBGA
QFN, POP ve kurşunsuz chip
2800 pin sayısı BGA
0201/1005 pasif bileşenler
0,3 / 0,4 Pitch
PoP Paketi
Flip-chip under-filled CCGA
BGA Aracı / Yığınlama
ve dahası…
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Vurgulamak: | pcb assembly process,circuit board assembly |
---|

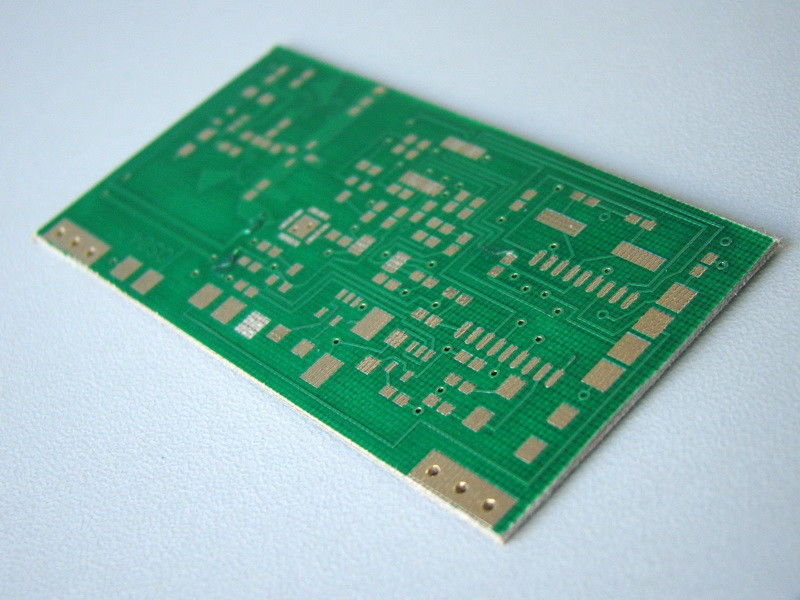

Electronic PCBA Design PCB circuit board , pcb design layout Double-Sided
Specifications
1, No MOQ;
2, OEM SMT&DIP Service;
3, 1-22 Layer;
4, UL.ROSH SGS Certification;
5, High quality, low cost&fast delivery.
Welcome to Rigao Electronics .CO.,Ltd.
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly and copy service
- Prototyping
- Components purchasing
- Cable and Wire Assemblies
- Plastics and Molds
- Fast turn around
1. Double-Sided FR4 material 1 oz copper pcb board
2. Green solder mask, Immersion gold
3. with Competitive price
General Specifications Capability
Material Requirements:
Size | Max.Finshed Size | 20.9”x24.4”(530mm x 620mm ) |
Board Thickness | Standard | 0.004”to0.16 ” ±10% ( 0.1mmto4.0mm±10% ) |
Min. | Single/ Double-sided:0.008”±0.004”(0.2mm ±0.1mm) | |
4-layer:0.01”±0.008”(0.4mm ±0.1mm) | ||
8-layer :0.01”±0.008”(0.4mm ±0.1mm) | ||
Bow and twist | < 7/1000 | |
Copper Weight | Outer Cu weight | 0.5oz ~ 3.0oz |
Inner Cu wight | 0.5oz ~ 3.0oz | |
Laminate Materials | FR-4,FR-1,,FR-2,CEM-1,CEM-3 |
Process Requirements:
Solder Mask | Color | green,light green,white,black,dark brown,yellow,red,blue |
Min. solder mask clearance | 0.003”(0.07mm) | |
Thickness | 0.0005”-0.0007”(0.012mm-0.017mm) | |
Silkscreen | Color | White,black,yellow,red,blue,green |
Min. Size | 0.006”(0.15mm) | |
Surface Finish | HASL,HASL pb free,immersion gold,immersion silver,immersion tin,O.S.P (Entek),S/G plating,ENEPIG,G/F plating,carbon |
Quality Control:
Electrical testing | Flying Probe Tester | Y |
Controlled Impedance | Tolerance | ±10% |
Impedance tester | Tektronix TDS8200 | |
Routing | End Mills Test | ± 0.006”(0.15mm) |
CNC Tolerance | ±0.004”(0.1mm) | |
V-Cut Depth V-cut | FR-4(1/3+-0.1mm);FR-1,FR-2,CEM-1,CEM-3(1/2+-0.1mm) | |
V-cut angle V-CUT | 15°,18°,30° | |
V-CUT | line,hole,V-shape |
Manufacturing Capability for PCB Board
1). Material type: CEM-3,FR-4,FR-4-TG170/TG180,Halogen Free,Rogers,Arlon,Taconic,Isola,PTFE, Bergquist
2). Surface Treatment: HASL,HASL lead-free,HAL,Flash gold,immersion gold,OSP,Gold Finger
Palting,Selective thick gold plating, immersion silver,immersion tin, Carbon ink,peelable mask
3). Solder mask colour: Green/MATT Green/Blue/Yello/White/Black/Red
4). Board Size: 650mm*1000mm
5). Board Layer: 1L-26L
6). Board thickness: 0.2mm to 6.0mm
7). Finished Copper thickness: 0.5 OZ to 6 OZ
8). Min. drilled hole size: 3mil (0.075mm)
9). Min. Line width/Line spacing: 3mil/3mil
10). Copper thickness in hole: >20um
11). Board thickness tolerance: ±10%
12). Outline tolerance: Routing:±0.1mm,Punching:±0.1mm
13). Hole tolerance: PTH: ±0.076mm , NPTH: ±0.05mm
14). impedance control tolerance: ±10%
15). Warp and Twist: <0.75%
16). Tested by:Flying-Probe Tester, Fixture tester , Visual Inspection
17). Special requirements: Buried and blind vias, impedance control, thick Cu PCB,selectivity plating gold 30 microinch
18). Profiling: Punching, Routing, V-CUT, Beveling
19). Certificate: UL,ISO 9001,ISO14001,ROHS
20). We have a sound quality management system,Ensure the quality of all products
High precision manufacturing
Our Principle is simple, “Act by heart, Make the best.”
Our Strength is distinct, “Years of experiences in PCB and PCBA field”
Our Goal is achievable, “ To be the most reliable supplier of PCB and PCBA.”
Our Orientation is clear, “Focus on prototypes and low to medium volume business ”
