Esnek pcb kurulu

Giriş:

Esnek baskılı devreler veya esnek elektronikler olarak da bilinen Flex PCB'ler, elektronik devre montajında tasarımcılar ve mühendisler için daha fazla seçenek sunar.

Bunlar, esnek, yüksek performanslı plastik malzemeden, genellikle poliimidden imal edilmiş olup, bu levha kullanım sırasında bükülmesini veya "bükülmesini" sağlar. Bu esneklik onları geniş bir uygulama yelpazesinde kullanacak şekilde açar.

OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

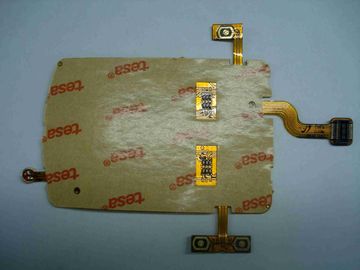

Büyük resim : OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	Winnal
Model Number:	CE, ROHS, UL

İletişim

Detaylı ürün tanımı

Vurgulamak:

flex board pcb

FPC

Flexible board

OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

Electrical Test 0.1-0.25mm Thickness OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper

Quick Detail:

HAL/ENIG Surface finishing

Custom Layer :1 Layer ,2 Layer ,4 Layer, 6 Layer

0.1-0.25mm Thickness

FR4 Material

0.5-3oz Copper

Description:

Layer	1-6
Material	Polyimide
Thickness	0.1-0.25mm
Surface finishing	HAL/ENIG
Copper	0.5-2oz
Test	Electrical Test

Applications:

Flexible board can be used for all kinds of electrical products, such as computer, mobile, led and so on. It’s widely used in various of industries in the world. We have been FPC and assembly business for ten years and provide different customized FPC to many countries all over the world. Welcome to contact us for further news.

Competitive Advantage:

1, Excellent quality control service

2, Competitive price

3, Quick production time

4, PCB design/production/test integrated service

Specifications:

Product Technical Parameter
Basic technology		Parameter
		Single/Double sided	Multilayer
Number of Layers		1-2	4~6
Copper Thickness		0.25~3.0OZ	0.5~3.0OZ
Base Board Thickness		0.1~0.3mm	0.1~0.3mm
Incombustibility		94V-0	94V-0
Peelable resistance		12.3N/cm	12.3N/cm
Twist		≤0.5%	≤0.5%
Insulation resistance		≥1011Ω	≥1011Ω
Test voltage		10-300V	10-300V
Finished board area		560×970mm	560×970mm
Min. Line Width and Spacing		0.1/0.1mm	0.1/0.1mm
Copper thickness in hole		≥25.0um	≥25.0um
Mini. pad diameter	Inner layer		0.05mm
	Out layer	0.076mm	0.076mm
Mini. Hole Diameter		0.25mm	0.20mm
Hole tolerance	PTH	±0.076mm	±0.076mm
	NPTH	±0.05mm	±0.05mm
Hole location tolerance		±0.076mm	±0.05mm
profile tolerance	Routing	±0.1mm	±0.1mm
	Punching	±0.13mm	±0.13mm
Solder mask bridge ability		≥0.1mm	≥0.075mm
Solder mask rigidity		6H	6H
Solderable test		245℃ 5 second	245℃ 5 second
Thermal cycling ability		288℃ 10 second	288℃ 10 second
Surface Finishing		OSP, HAL, HAL Lead-free, Immersion gold , Gold plating, Rosin, Gold finger, Immersion Tin and so on
Qaulity standard		IPC-A-600F IPC-ML-950
Sample standard		STD-105E-Ⅱ
