Giriş
PCB Meclisi, PCB bileşenleri ve montajının yanı sıra basılı devre tasarımı, PCB imalatı ve nihai ürünün güçlü bir anlayışıyla ilgili bilgi gerektiren bir işlemdir. Devre kartı montajı, mükemmel ürünü ilk seferde sunmak için bulmacanın yalnızca bir parçasıdır.
San Francisco Circuits tüm devre kartı hizmetleri için tek çözümdür; bu nedenle tasarımdan montaja kadar PCB üretim süreciyle sıklıkla yerleşik kalırız. Güçlü bir şekilde kanıtlanmış devre montajı ve imalat ortakları ağı sayesinde, prototipiniz veya üretim PCB uygulamanız için en gelişmiş ve neredeyse sınırsız yetenekleri sağlayabiliriz. Satın alma süreciyle birlikte gelen sıkıntıdan kurtulun ve birden fazla bileşen satıcısı ile uğraşın. Uzmanlarımız size nihai ürününüz için en iyi parçaları bulacaktır.
PCB Montaj Hizmetleri:
Hızlı dönüş prototip montajı
Anahtar teslimi montaj
Kısmi anahtar-takımı
Konşimento montajı
RoHS uyumlu kurşunsuz montaj
RoHS olmayan montaj
Konformal kaplama
Nihai kutu kurma ve paketleme
PCB Montaj İşlemi
Delme ----- Pozlama ----- Kaplama ----- Etaching & Stripping ----- Delme ----- Elektriksel Test ----- SMT ----- Dalga Lehimleme --- --Aygıt Oluşturma ----- BİT ----- Fonksiyon Testi ----- Sıcaklık ve Nem Testi
Test Hizmetleri
X-Işını (2-D ve 3-D)
BGA X-Işını Muayene
AOI Testi (Otomatik Optik Muayene)
BİT Testi (Devre Dışı Test)
İşlevsel Testler (kurul ve sistem seviyesinde)
Uçan Prob
Yetenekler
Yüzeye Monte Teknolojisi / Parçaları (SMT Montajı)
Through-Hole Cihazı / Parçaları (THD)
Karışık Parçalar: SMT ve THD montajı
BGA / Mikro BGA / uBGA
QFN, POP ve kurşunsuz chip
2800 pin sayısı BGA
0201/1005 pasif bileşenler
0,3 / 0,4 Pitch
PoP Paketi
Flip-chip under-filled CCGA
BGA Aracı / Yığınlama
ve dahası…
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Vurgulamak: | PCB Assembly,PCBA,PCB |
---|
Specifications

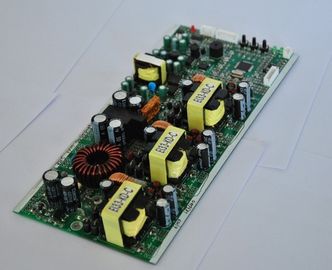

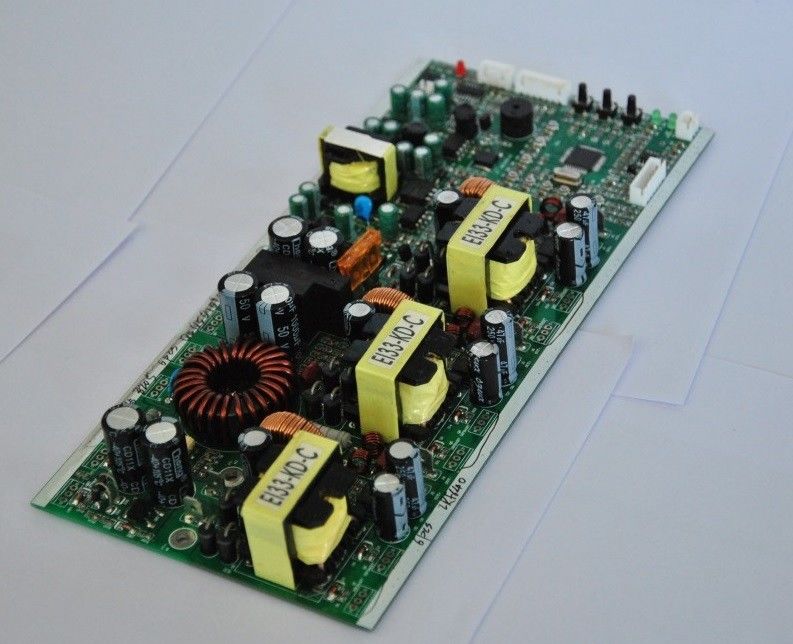

Hi-Speed SMT PCBA & PCB board assembly factory
1.MOQ is 1piece
2.PCBA assembly
3.pcb fast prototype
4.E-test for all pcb
Surface Mount Assembly
We offers surface mount technology (SMT) assembly services from proto-type through medium and high volume production, including fine pitch component. Surface mount capabilities include:
· Semiautomatic Screen Printing
· Place Component upto 19 mil Pitch
· Prototype, Medium to High Volume Production Assembly
· FR4, Aluminum, PI
· Single and Double Sided Assembly
· Mixed Technology(Tjrough Hole & SMT)
· ESD Controlled Area
Through Hole Assembly
PCB Assembly provides through hole or mixed technology assembly solutions. Wave soldering is accomplished with the latest sophisticated equipment. Our Through hole assembly capabilities include:
· Full Through-Hole Assembly Line
· Prototype, Medium to High Volume Production Assembly
· ESD Controlled Area
Reverse Engineering of Electronic Products
We has developed capabilities of generating the necessary manufacturing documentation from finished products. Services include:
· Artwork and PCB Scanning
· Schematics and Gerber File Generation
· Bill of Material and Parts List Generation
